Original article

Hardening of Pinus oaxacana Mirov seedlings under irrigation management in nursery

http://dx.doi.org/10.5154/r.rchscfa.2016.05.029

Ávila-Angulo, María L. 1 ; Aldrete, Arnulfo 1 * ; Vargas-Hernández, J. Jesús 1 ; Gómez-Guerrero, Armando 1 ; González-Hernández, Víctor A. 1 ; Velázquez-Martínez, Alejandro 1

  • aff1Colegio de Postgraduados, Campus Montecillo. km 36.5 Carretera México-Texcoco. C. P. 56230. Montecillo, Texcoco, Estado de México, México.

Corresponding author: aaldrete@colpos.mx Tel.: 52+ (595) 1011774

Received: May 02, 2016; Accepted: February 10, 2017

This is an open-access article distributed under the terms of the Creative Commons Attribution License view the permissions of this license

Abstract

Introduction:

Plants should undergo a hardening process in the nursery to improve the survival of forest plantations in degraded areas.

Purpose of the study:

The effect of three levels of irrigation was evaluated in the hardening stage on some morphological and physiological variables of Pinus oaxacana.

Materials and Methods:

The treatments evaluated were three levels of irrigation and a control treatment. Irrigation was performed when the containers reduced their saturation weight by 30 % (frequent), 40-45% (medium) and 45-50% (low); in the control treatment, irrigation was applied every two or three days. The study used a randomized complete block design; each treatment consisted of 100 plants.

Results and Discussion:

Morphological indicators with significant differences (P ≤ 0.05) among treatments were root collar diameter, shoot dry weight, and total dry weight. The physiological indicators using the root growth potential test showed no significant differences. Plants with frequent irrigation had greater diameter, shoot dry weight, and total dry weight.

Conclusions:

A reduction of irrigation between 30 to 45 % in P. oaxacana allows the production of hardened plants, with greater possibility of success at the time of transplantation in the field.

Keywords:water stress; root growth potential; seedling quality; irrigation frequency.

Introduction

The degradation of forests has generated large areas with intense and frequent disturbances, which causes fragility to the ecosystems and removes the possibility of the vegetation recovering its original condition by natural means (Vilagrosa et al., 2005). For these reasons, it is essential to apply practices such as afforestation, reforestation and soil conservation (Comisión Nacional Forestal [CONAFOR], 2010).

The result of reforestation at degraded sites depends on site environmental conditions and seedling quality at the time of planting (Duryea, 1985; Grossnickle, 2005). The quality of the plant is the result of genetic, morphological and physiological attributes, and the health condition of the propagules used in reforestation (Birchler, Rose, Royo, & Pardos, 1998).

In the case of nursery production, hardening is the most important phase since the plant decreases growth in height and roots, but increases in diameter (Landis, 2013), which confers resistance to drought and frost events. There are four ways of manipulating the hardening process: reduction in the amount of ammoniacal nitrogen, frequency of watering, photoperiod and exposure of the plants to high and low temperatures (Grossnickle, 2012; Landis, 2013).

The aim of this study was to evaluate the effect of three levels of irrigation in the hardening stage on the quality of Pinus oaxacana Mirov, through morphological response (height, diameter, accumulation of biomass and Dickson quality index) and physiological response (root growth potential) of plants grown under nursery conditions. In this study, it was considered that hardening shows a greater ability to form roots in the field and, consequently, greater capacity to avoid water stress, maximum resistance to environmental stress and functional integrity.

Materials and Methods

The study was carried out inside a greenhouse at Posgrado en Ciencias Forestales of Colegio de Postgraduados-Campus Montecillo, Estado de México (19° 28’ 26” N - 98° 53’ 42.18” W and altitude of 2,240 m). The germplasm bank "El Vergel", located in the city of Puebla, provided the seed of P. oaxacana that was used in the sowing. The seed lot, which had 98 % purity and 80 % germination, was collected in 2010 in Perote, Veracruz. Sowing took place in the second half of October 2011; the substrate was a conventional mixture of peat moss, perlite and vermiculite in a 60:20:20 volume ratio, added with controlled release fertilizer (Osmocote® Plus) at a dose of 7 kg·m-3. Black individual containers with a volume of 220 mL and lateral openings were used, which were placed in a tray with 25 cavities.

Seedlings grew for nine months, before applying the hardening treatments. Plant nursery management included light irrigation (1 to 3 cm depth) per day for six weeks, and then heavy irrigation (to saturation) every two days during the rapid growth stage. In addition to controlled release fertilization, soluble fertilizer (Peters®) was applied once a week in irrigation water. In the fast-growing stage, the formulation 20-20-20 was used in doses of 70 µL·L-1 of nitrogen, 62.5 µL·L-1 of phosphorus and 77.5 µL·L-1 of potassium.

The effect of hardening by reduction of irrigation was evaluated from July 2, 2012 on 1,600 plants. The treatments were three levels of irrigation (frequent, medium and low) and the control treatment. In the treatment of frequent (F) level, irrigation was applied when the weight of the container was reduced 30 % with respect to the weight of saturation; in the treatment of medium (M) irrigation, when the weight of the container was reduced between 40 and 45 %; and in the case of low irrigation, when the container lost 46 to 50 % of the weight; in the control treatment (T), irrigation was applied every 48 to 72 hours, to maintain a moisture content in the substrate close to field capacity. The treatments were maintained in that condition for eight weeks.

The weight of the container at field capacity was determined before starting the experiment. All the trays with the containers were irrigated at field capacity and weighed on a digital scale. With the data obtained, the mean and its 95 % confidence interval were calculated per treatment per replicate. From these data, we estimated the weight range equivalent to the loss of 30 %, 40 to 45 % and 46 to 50 %.

The weight of two trays with the containers, per treatment per replicate, was monitored daily to determine the loss of moisture and to define the moment of irrigation per treatment. During irrigation, the trays with the containers were irrigated and then weighed, and if they did not reach the weight at field capacity, they were watered again. The average weight range of the 25 containers at field capacity was 4.221 to 4.617 g with an average of 4.419 g. The weight of the 25 containers when they lost 30 % ranged from 2,915 g to 3.331 g; when they lost between 40 and 45 % ranged from 2,159 g to 2,769 g; and when the loss was 50 %, the weight ranged from 2,000 g to 2,396 g.

Assessment of the morphological characteristics

After the hardening period, eight weeks after starting the treatments two recovery irrigations were applied. Consisting of watering at field capacity leaving a period of two days to let the plants recover from the stress generated by irrigation from weeks ago. A random sample of 12 plants per treatment per block was selected from the central part of the plots and the total height and diameter of the root collar were measured. In each plant, the substrate was removed from the root using tap water in abundance and being careful not to damage the structure. Then the shoot was separated of the radical part with a cut at the collar of the root. Samples were placed in a drying oven at a temperature of 70 °C for 72 h to determine the dry weight of the shoot and root, and the total dry weight of the plant. With the data collected, the sturdiness quotient (plant height and diameter ratio), shoot/root ratio (RPAR) and the Dickson quality index (DQI) were calculated using the following equation (Dickson, Leaf, & Hosner, 1960):

D Q I = T D W h e i g h t d i a m e t e r + ( S D W R D W )

Height was expressed in centimeters and diameter in millimeters.

Root growth potential

The root growth potential (RGP) test consisted in placing a random sample of plants in a favorable controlled environment to promote rapid root growth. The sample size was 12 plants per treatment. The plants were transplanted in pots with a capacity of 10 L using a substrate of bark and perlite in a ratio of 70:30; at the time of transplantation, all white roots were cut. The plants were kept for 40 days in the greenhouse with daily irrigations. The arrangement of the pots was random. At 40 days, the plants were removed from the pots for careful washing of the roots and their measurement. The variables measured were: total number (TN), total length (TL) and dry weight of new roots (DWNR) in growth. The new roots were identified by the white color and only those that had a length greater than 1 cm were considered.

Experimental design and Statistical analysis

The experiment was set up in randomized complete blocks design, in four growth beds; each bed was considered a block. Each treatment consisted of 100 plants per block, which were placed on four tables. The data was subjected to a variance analysis (ANDEVA) using the PROC GLM procedure with SAS software version 9.0 (Statistical Analysis System [SAS], 2002). The statistical model used for the design of completely randomized blocks with subsampling is as follows:

y i j = μ + τ i + β j + ε i j + δ i j k

Significant differences were considered when P ≤ 0.05. The Tukey's test was used to determine the least significant difference among treatments. The sturdiness quotient, shoot/ root ratio and Dickson index were transformed with the sine-arc function for data normalization. In the case of the variables of the RGP, a linear regression was also made to find the trend of the data.

Results and Discussion

Morphology of Pinus oaxacana under different levels of irrigation

Hardening treatments with different levels of irrigation showed significant differences (P ≤ 0.05) in the variables diameter, shoot dry weight and total dry weight (Table 1). The control and frequent irrigation treatments (reduction of 30 % with respect to saturation weight) had the highest values in diameter, shoot and total dry weight. In contrast, the plants with low irrigation treatment had the lowest values of diameter and total dry weight. In all treatments there were values of DQI near 1, which indicates balance between the shoot and radical part of the plant.

Table 1. Morphological characteristics of Pinus oaxacana plants submitted to different levels of irrigation as hardening treatments.

Irrigation level Height (cm) Diameter (mm) Dry weight (g) SRR Sturdiness quotient DQI
Shoot Root Total
Frequent 29.4 ± 2.9 a 6.5 ± 0.1 a 7.5 ± 0.6 a 2.3 ± 0.1 a 9.8 ± 0.6 a 3.4 ± 0.2 a 4.6 ± 0.4 a 1.3 ± 0.1 a
Medium 26.7 ± 1.4 a 6.1 ± 0.2 bc 7.1 ± 0.3 ab 2.0 ± 0.3 a 9.1 ± 0.6 ab 3.6 ± 0.3 a 4.5 ± 0.3 a 1.2 ± 0.1 a
Low 26.4 ± 1.5 a 5.9 ± 0.2 c 6.4 ± 0.4 b 2.0 ± 0.2 a 8.4 ± 0.7 b 3.3 ± 0.3 a 4.6 ± 0.2 a 1.1 ± 0.2 a
Control treatment 28.9 ± 3.0 a 6.3 ± 0.2 ab 7.5 ± 0.3 a 2.2 ± 0.2 a 9.6 ± 0.5 a 3.6 ± 0.3 a 4.7 ± 0.6 a 1.2 ± 0.1 a
Frequent, medium and low irrigations were applied when there was reduction of 30 %, 40 to 45 % and 46 to 50 %, respectively, with respect to the saturation weight. SRR = Shoot/root ratio. DQI = Dickson Quality Index. Means with different letters in a column are statistically different (Tukey P ( 0.05).

The response of the plants to the different levels of irrigation in the nursery was related to the availability of water; to greater amount of water available, greater diameter and biomass, while the growth of the root was not reduced. This contradicts the results of Villar-Salvador, Peñuelas-Rubira, and Jacobs (2013), who report that the plants of Pinus pinea L. reduced the growth of the root, because it was inhibited with water stress by the growth of the shoot. Other species have shown similar results in the shoot and total dry weight as a response to severe water stress, because as it increases there is less production of total biomass. This may be due to the fact that drought affects the elasticity of the cell wall, as in the case of Eucalyptus globulus Labill. (Coopman, Jara, Escobar, Corcuera, & Bravo, 2010; Pita & Pardos, 2001). In contrast, in Pinus halepensis Mill. (Royo, Gil, & Pardos, 2001) and Quercus ilex L. (Planelles-González, Villar-Salvador, Oliet-Palá, & López-Arias, 2004; Villar-Salvador et al., 2004), water stress did not affect the shoot/root ratio; that is, it did not have an effect on the equilibrium of the plant. In P. oaxacana, white roots were generated in the event of water stress, because it is found in regions with dry and cold climates. This species has developed adaptation mechanisms such as the rapid emission of white roots to ensure the absorption of water and nutrients, and the plant may present stomatal closure in the cells of the needles to avoid water loss (Valladares et al., 2008).

Root growth potential of Pinus oaxacana under different levels of irrigation

The RGP test showed no significant difference (P > 0.05) between irrigation treatments. The correlation between the level of irrigation and the production of new roots is high; when the level of irrigation is low, the production of white roots decreases. The variability among the data, as shown in Figure 1, is influenced by the high value of the coefficient of variation in the variables total number of roots (0.10), total root length (10.82) and dry weight of white roots (0.17), therefore, it is not possible to conclude which one is the treatment that promotes a greater regeneration of roots. In general, in all treatments, the number of roots emitted on average was greater than 100 and it is inferred that there was a positive response in P. oaxacana at all levels of irrigation.

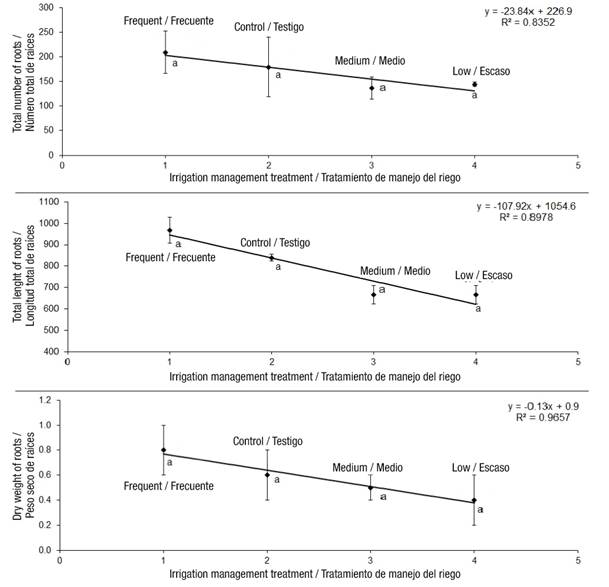

Figure 1. Production, length and dry weight root in Pinus oaxacana plants with different levels of irrigation. Frequent, medium and low irrigations were applied when there was reduction of 30 %, 40 to 45 % and 46 to 50 %, respectively, with respect to the saturation weight. Bars with different letter are statistically different (Tukey, P ≤ 0.05).

In a similar study with Q. ilex, the highest root biomass was present in the control treatment, while in low, medium and severe water stress levels (40, 45 and 50 % weight loss from saturation) there was no difference (P ≤ 0.05) in the number of roots emitted (Villar-Salvador et al., 2004). In some conifers such as P. halepensis, the average root yield between treatments was 30 to 42 per plant, and the length varied between 80 and 100 cm; the response to water stress did not differ (P ≤ 0.05) among treatments, except for the treatment with severe stress (Villar-Salvador et al., 1997). In both cases, the response in the formation of new roots at maximum stress was negative. In contrast to the results obtained from the water stress hardening activity, there is no effect on the ability to regenerate the root system, one of the causes may be the intensity and time of hardening (Grossnickle, 2005). Emission of new roots is sensitive to the history of drought stress experienced by the seedling (Tinus, 1996).

In this test it was expected that at higher RGP, plant development capacity in the field would be higher, due to the correlation of a greater ability to form roots in the field and to avoid water stress. The functions of water absorption in roots and leaves indicate that the plant has an optimal physiological condition, i. e., the plant has functional integrity (Villar et al., 1997). According to the above, we can relate the data and infer that P. oaxacana has the capacity to regenerate the radical system in the event of severe drought.

Conclusions

Hardening with reduced irrigation in P. oaxacana seedlings developed morphological parameters in equilibrium. Reduced irrigation increased the diameter of the root collar without affecting the growth of the root system. Hardening in the months of May to June with eight weeks of duration created an adaptation response to water stress. The species tolerates a level of 50 % in the reduction of irrigation without presenting less regeneration of the root system. A reduction of irrigation between 30 and 45 % in P. oaxacana allows the production of hardened plants with greater possibility of success at the time of transplantation in the field.

References

Birchler, T., Rose, R. W., Royo, A., & Pardos, M. (1998). La planta ideal: revisión del concepto, parámetros definitorios e implementación práctica. Investigación Agraria: Sistemas y Recursos Forestales, 7, 109-121. Retrieved from http://compostamasvi.com/ebooks/plantaideal.pdf

Comisión Nacional Forestal (CONAFOR). (2010). Prácticas de reforestación. Jalisco, México: Autor.

Coopman, R. E., Jara, J. C., Escobar, R., Corcuera, L. J., & Bravo, L. A. (2010). Genotypic variation in morphology and freezing resistance of Eucalyptus globulus seedlings subjected to drought hardening in nursery. Electronic Journal Biotechnology, 13(1), 1-9. doi: 10.2225/vol13-issue1-fulltext-10

Dickson, A., Leaf, A. L., & Hosner, J. F. (1960). Quality appraisal of white spruce and white pine seedlings stock in nurseries. Forestry Chronicle, 36(1), 10-13. doi: 10.5558/tfc36010-1

Duryea, M. L. (1985). Evaluating seedling quality: Importance to reforestation. In M. L. Duryea (Ed.), Evaluating seedling quality: Principles, procedures, and predictive abilities of major tests (pp. 1-4). Corvallis, Oregon, USA: Forest Research Laboratory, Oregon State University. Retrieved from https://rngr.net/publications/evaluating/PDF.2003-10-27.2237/

Grossnickle, S. C. (2005). Importance of root growth in overcoming planting stress. New Forests, 30(2), 273-294. doi: 10.1007/s11056-004-8303-2

Grossnickle, S. C. (2012). Why seedlings survive: Influence of plant attributes. New Forests, 43(5), 711-738. doi: 10.1007/s11056-012-9336-6

Landis, T. D. (2013). Conditioning nursery plants to promote hardiness and dormancy. In R. K. Dumroese, & T. D. Landis (Eds.), Forest nursery notes (pp. 5-14). Washington, DC, USA: USDA. Retrieved from http://www.rngr.net/publications/fnn/2013-winter/2013-winter-forest-nursery-notes/at_download/file

Pita, P., & Pardos, J. A. (2001). Growth, leaf morphology, water use and tissue water relations of Eucalyptus globulus clones in response to water deficit. Tree Physiolgy, 21(9), 599-607. doi: 10.1093/treephys/21.9.599

Planelles-González, R., Villar-Salvador, P., Oliet-Palá, J., & López-Arias, M. (2004). Efecto de tres niveles de estrés hídrico y dos periodos de aplicación sobre algunos parámetros de calidad functional de Quercus ilex L. y su desarrollo postrasplante. Cuadernos de la Sociedad Española de Ciencias Forestales, 17, 81-85. Retrieved from https://dialnet.unirioja.es/ejemplar/223445

Royo, A., Gil, L., & Pardos, J. A. (2001). Effect of water stress conditioning on morphology, physiology and field performance of Pinus halepensis Mill. seedlings. New Forests, 21(2), 127-140. doi: 10.1023/A:1011892732084

Statistical Analysis System (SAS Institute). (2002). The SAS system for Windows. Release version 9.0. Cary, NC, USA: Author.

Tinus, R. (1996). Root growth potential as an indicator of drought stress history. Tree Physiology, 16(9), 795-799. doi: 10.1093/treephys/16.9.795

Valladares, F., Vilagrosa, A., Peñuelas, J., Ogaya, R., Camarero, J. J., Corcuera, L., Gil-Pelegrí, E. (2008). Estrés hídrico: ecofisiología y escalas de la sequía. En Valladares, F. (Ed.), Ecología del bosque mediterráneo en un mundo cambiante (2ª ed., pp. 165‒192). España: Organismo Autónomo Parques Nacionales.

Vilagrosa, A., Cortina, J., Rubio, E., Trubat, R., Chirino, E., Gil P., E., & Vallejo, V. R. (2005). El papel de la ecofisiología en la restauración forestal de ecosistemas mediterráneos. Investigación Agraria: Sistemas y Recursos Forestales, 14, 446−461. Retrieved from https://dialnet.unirioja.es/servlet/articulo?codigo=1341367

Villar-Salvador, P., Ocaña-Bueno, L., Peñuelas-Rubira, J. L., Carrasco-Manzano, I., Domínguez-Lerena, S., & Renilla-Estrada, I. (1997). Relaciones hídricas y potencial de formación de raíces en plántulas de Pinus halepensis Mill. sometidas a diferentes niveles de endurecimiento por estrés hídrico. Cuadernos de la Sociedad Española de Ciencias Forestales, 4, 81-92. Retrieved from http://www.magrama.gob.es/es/desarrollo-rural/temas/politica-forestal/endurecimiento_ph1_tcm7-23450.pdf

Villar-Salvador, P., Peñuelas-Rubira, J. L., & Jacobs, D. F. (2013). Nitrogen nutrition and drought hardening exert opposite effects on the stress tolerance of Pinus pinea L. seedlings. Tree Physiology, 33(2), 221-232. doi: 10.1093/treephys/tps133

Villar-Salvador, P., Planelles, R., Oliet, J., Peñuelas-Rubira, J. L., Jacobs, D. F., & González, M. (2004). Drought tolerance and transplanting performance of holm oak (Quercus ilex) seedlings after drought hardening in the nursery. Tree Physiology, 24(10), 1147-1155. doi: 10.1093/treephys/24.10.1147

Figures:

Figure 1. Production, length and dry weight root in Pinus oaxacana plants with different levels of irrigation. Frequent, medium and low irrigations were applied when there was reduction of 30 %, 40 to 45 % and 46 to 50 %, respectively, with respect to the saturation weight. Bars with different letter are statistically different (Tukey, P ≤ 0.05).

Tables:

Table 1. Morphological characteristics of Pinus oaxacana plants submitted to different levels of irrigation as hardening treatments.
Irrigation level Height (cm) Diameter (mm) Dry weight (g) SRR Sturdiness quotient DQI
Shoot Root Total
Frequent 29.4 ± 2.9 a 6.5 ± 0.1 a 7.5 ± 0.6 a 2.3 ± 0.1 a 9.8 ± 0.6 a 3.4 ± 0.2 a 4.6 ± 0.4 a 1.3 ± 0.1 a
Medium 26.7 ± 1.4 a 6.1 ± 0.2 bc 7.1 ± 0.3 ab 2.0 ± 0.3 a 9.1 ± 0.6 ab 3.6 ± 0.3 a 4.5 ± 0.3 a 1.2 ± 0.1 a
Low 26.4 ± 1.5 a 5.9 ± 0.2 c 6.4 ± 0.4 b 2.0 ± 0.2 a 8.4 ± 0.7 b 3.3 ± 0.3 a 4.6 ± 0.2 a 1.1 ± 0.2 a
Control treatment 28.9 ± 3.0 a 6.3 ± 0.2 ab 7.5 ± 0.3 a 2.2 ± 0.2 a 9.6 ± 0.5 a 3.6 ± 0.3 a 4.7 ± 0.6 a 1.2 ± 0.1 a
Frequent, medium and low irrigations were applied when there was reduction of 30 %, 40 to 45 % and 46 to 50 %, respectively, with respect to the saturation weight. SRR = Shoot/root ratio. DQI = Dickson Quality Index. Means with different letters in a column are statistically different (Tukey P ( 0.05).
